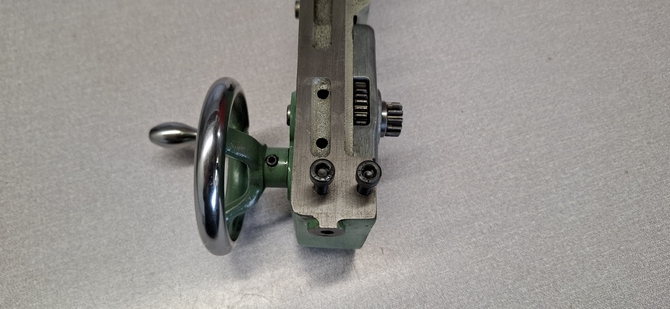

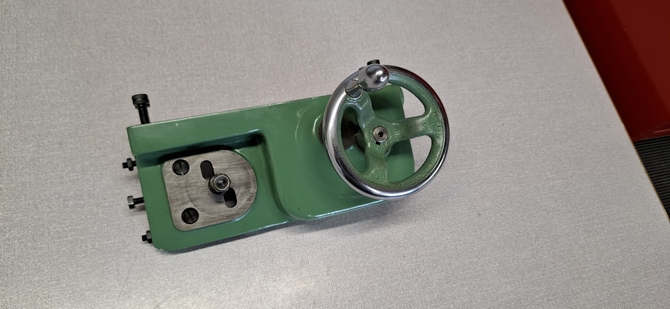

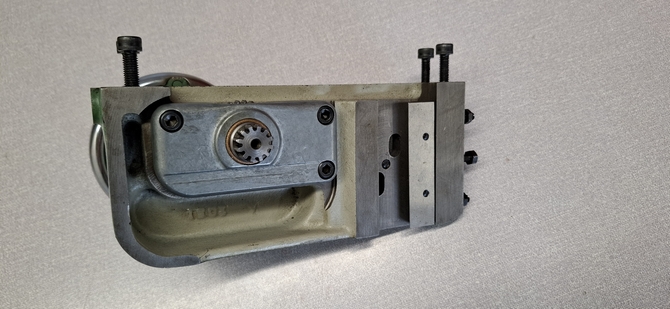

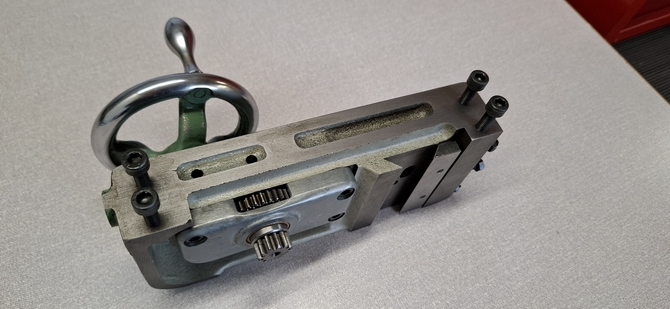

7 Series Apron Assembly [S7AA_1]
new!
Cast iron apron assembly to fit 7 Series lathes with 3/4" diameter leadscrew
Comprising:
A2081/2 Apron 75/1340 Gear Cover Assembly (fitted with new CT15 bush) A2086 Hand Traverse Pinion (new) A2082 Gib Strip A2085 Rack Pinion Assembly A2087 Handwheel assembly Plus other parts as shown
Colour: Green
Condition: some wear in apron body - 8/10. Rack pinion wear - 8/10
Application: Super 7; ML7-R; ML7 long bed lathes; ML7 standard bed lathes from Serial No. K111727 (fitted with 3/4" dia. leadscrew)
Note: This apron uses Metric fixing screws (supplied) - a change to M6 screws from 1/4" BSF was introduced between 1973 and 1976
Category: Used item
|
£0![7 Series Apron Assembly [S7AA_1]](http://www.small-lathes.co.uk/photos/1.73865920260913_134348.jpg)
![7 Series Apron Assembly [S7AA_1]](http://www.small-lathes.co.uk/photos/1.38865320260913_134404.jpg)
![7 Series Apron Assembly [S7AA_1]](http://www.small-lathes.co.uk/photos/1.38778320260913_134421.jpg)
![7 Series Apron Assembly [S7AA_1]](http://www.small-lathes.co.uk/photos/1.22384320260913_134445.jpg)
